Improving Pallet Accessibility for Manufacturing Operations

Cost-Effective Pallet Storage for High-SKU Manufacturing Operations in Jakarta

A manufacturing company in Jakarta required a storage solution capable of handling a large variety of SKUs while maintaining direct access to every pallet location. The customer also wanted to maximise the value of its existing warehouse equipment, avoiding unnecessary investment in new material handling systems.

To address these requirements, a Selective Pallet Racking installation providing approximately 1,000 pallet positions was implemented. The project was delivered by Intramega Global,Constructor's authorised dealer in Indonesia, combining local expertise with proven pallet storage solutions.



Country: Indonesia
Industry: Manufacturing
System: Selective Pallet Racking
Special Features: Direct pallet access, compatibility with existing reach trucks, reinforced frame protection, pre-galvanised frames
Specifications: 6 m high | 1,000 pallet positions | 1,000 kg per pallet

The Challenge

The customer's warehouse handled a large number of SKUs, making direct pallet accessibility a key operational requirement. Warehouse operators needed to retrieve specific pallets quickly and efficiently without moving other loads first. At the same time, the customer wanted to continue using its existing reach trucks rather than investing in additional material handling equipment.

The challenge was therefore to deliver a cost-effective storage solution that balanced accessibility, operational efficiency and storage capacity while working within the existing warehouse environment.

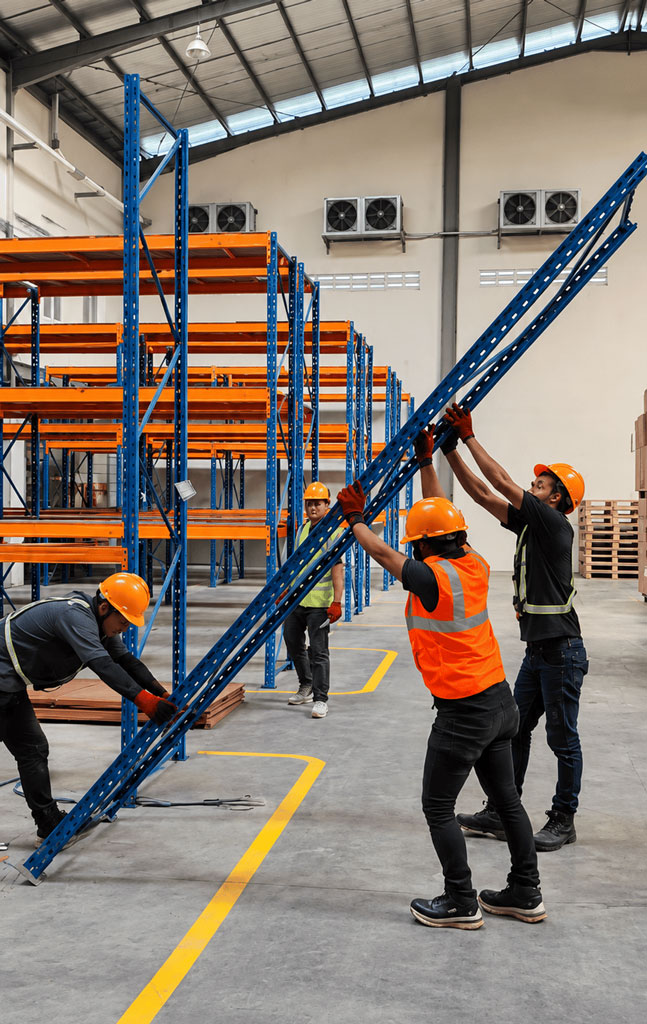

The Solution

Working closely with the customer, Intramega Global and Constructor

implemented a Selective Pallet Racking solution designed specifically for high-SKU operations.

The 6-metre-high installation provides approximately 1,000 pallet positions and accommodates pallets measuring 1,200 × 1,100 × 1,700 mm with loads of up to 1,000 kg per pallet. The configuration ensures direct access to every pallet position while making full use of the customer's existing reach trucks.

To enhance long-term durability and operational safety, the solution also incorporates:

  • A reinforced frame protector design with dual supports
  • Extended impact protection for rack uprights
  • Pre-galvanised frames for improved corrosion resistance
  • Durable rack components designed for long-term warehouse operation

The result is a practical and efficient storage solution tailored to the customer's operational requirements.

The Solution

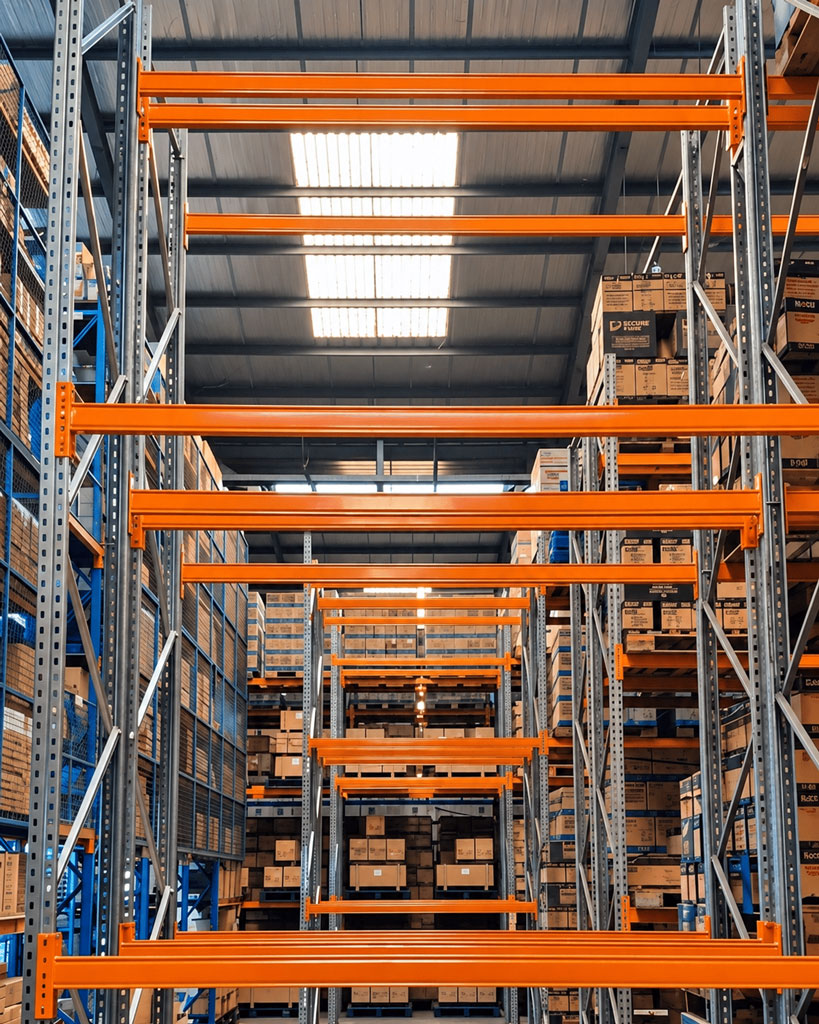

The Result

Direct Pallet Accessibility

Every pallet position can be accessed individually, supporting efficient handling of a large number of SKUs.

Cost-Effective Operation

The customer can continue using existing reach trucks without additional investment in specialised material handling equipment.

Improved Warehouse Efficiency

The layout supports fast pallet retrieval and streamlined warehouse operations.

Increased Rack Protection

Enhanced frame protectors help reduce accidental damage in high-traffic warehouse areas.

Long-Term Durability

Pre-galvanised frames provide additional corrosion protection and support long service life.

The Result

This installation provides the customer with a flexible, cost-effective, and accessible storage solution that supports efficient high-SKU warehouse operations and long-term reliability.

Why Pallet Racking

Why Selective Pallet Racking?

Maximum accessibility for operations handling a wide variety of SKUs.

Media image

Direct Access

Provides immediate access to every pallet location.

Operational Flexibility

Ideal for warehouses storing a large number of different products.

Cost Efficiency

Works effectively with standard reach truck operations.

Scalable Design

A flexible solution that can adapt to changing storage requirements.
